OUT OF STOCK Nozzle Jet 90 Degree

Part No.: 300-015

Out of Stock

Categories:
Fuel System
Nozzles
ENDERLE

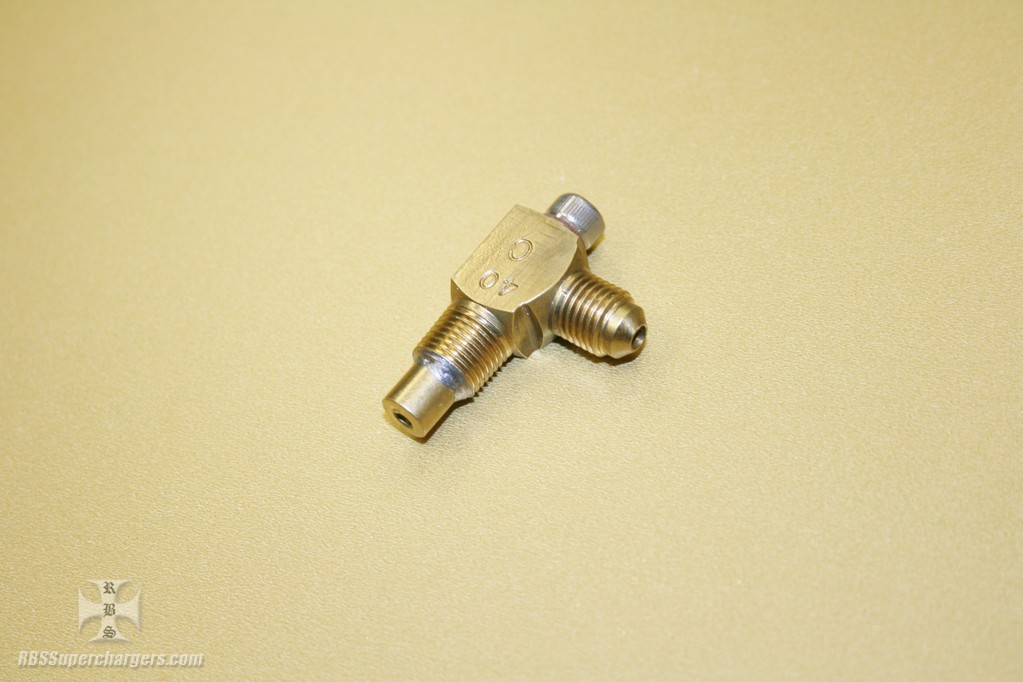

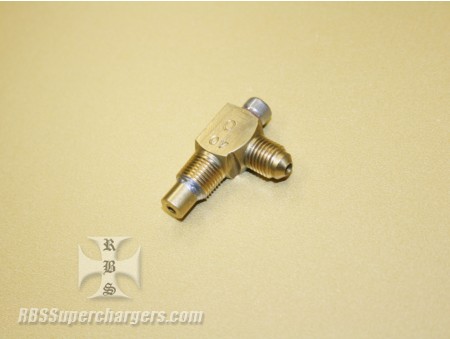

For the racer that may have a tight fit nozzle jet application or wants to run their fuel lines close to the side of the injector, blower case or intake manifold RBS provides these 90 degree nozzle jets.

Made from solid brass these jets use the industry standard 1/8" NPT thread to go into the manifold or blower case and the -3 AN hose with 37 degree flare to connect the fuel hose to.

Nozzle jet is sized to customers request and dimensions are as follows, nozzle jet portion sticks past the last NPT thread .300", nozzle is 1.520" from jet end to top of bolt and main body is .875" above the first pipe thread.

These are made to order and will take a couple days before shipping. Please specify jet size when ordering.
