BBC/SBC Straight Mag Drive Base Std. Deck FIE/Mallory/MSD

Part No.:  2500-0022F
RBS on FaceBook

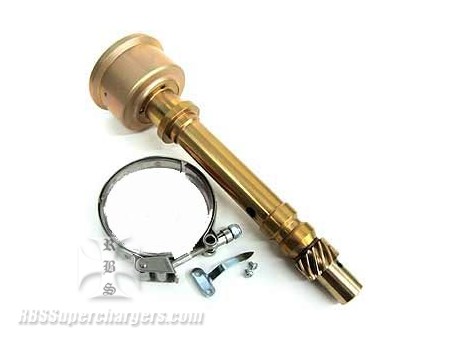

RBS carries a full line of mag drives and this is one shining example for our SBC and BBC customers. It is a FIE mag base assm. that works with a standard 9.80" deck applications.

Housing is made from alum. and is anodized for a stunning finish. Kit includes a timing pointer, stainless steel magneto clamp and a billet alum. coupler to adpt. most Mallory/FIE Super mags or MSD mags. It also uses a bronze gear that works well with most racing camshafts. Updated drive coupler allows for better ignition timing accuracy as where the old nylon diamond could become stretched or brittle and allow timing variables the cross design eliminates the issue. Cross drive is included with drive assm.

Drive seals to the manifold with a gasket for a leak free application and measures from the gasket surface to the magneto surface 3.375" tall on a standard deck. Mag drive comes with a bronze mag drive gear pinned on the driveshaft.
