289/302 Straight Mag Drive Base FIE/Mallory/MSD

Part No.:
RBS on FaceBook

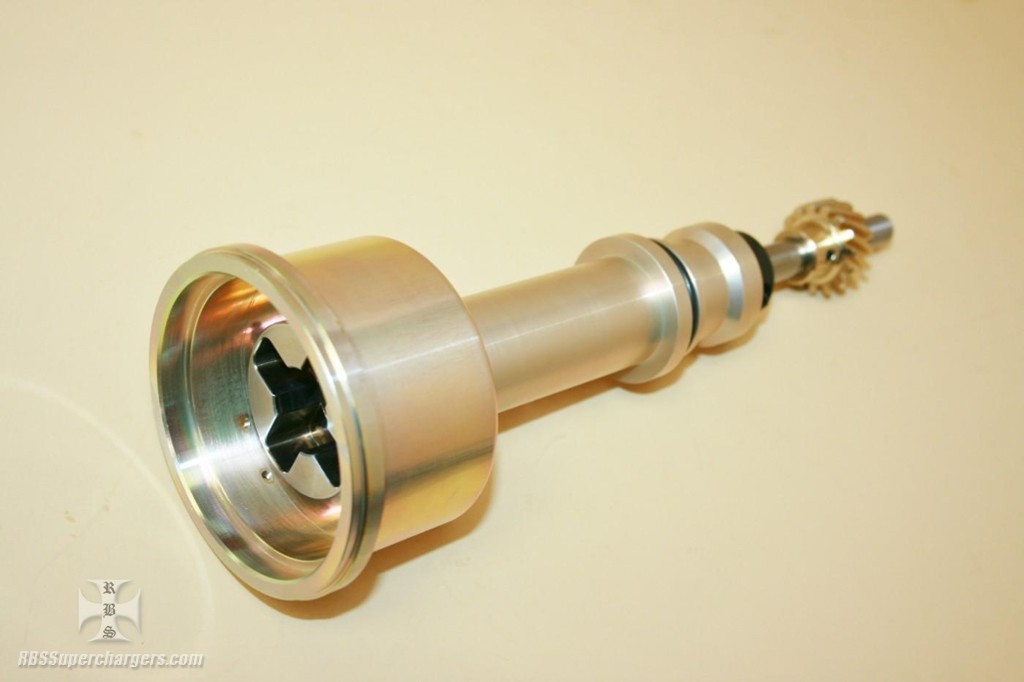

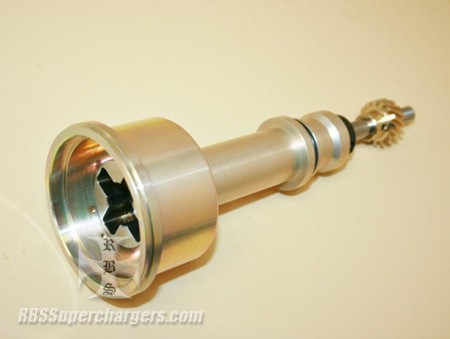

RBS carries a mag drive for the Ford 260/289/302 motor and here is one shining example for our small block Ford customers.

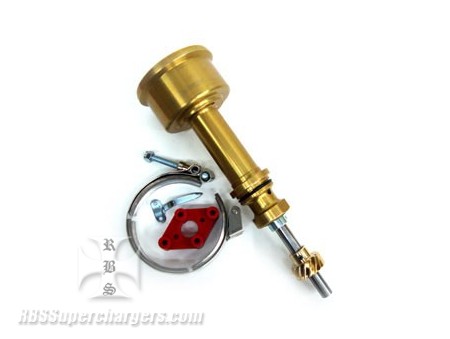

Housing is made from heat treated alum. and is anodized for corrosion protection. Kit includes a timing pointer, stainless steel magneto clamp and a lockout diamond coupler to adpt. most Mallory/FIE Super mags to the mag drive.

Drive seals to the manifold with a O-ring for a leak free application and measures from the gasket surface to the magneto surface 5.437" tall. Mag drive comes with a bronze mag drive gear pinned on the driveshaft.

If the racer is using a MSD mag, buyer must purchase a #2500-0112 cross adapter separate in the pull down menu.
