440/Hemi Chrysler Straight Mag Drive Base FIE/Mallory/MSD

Part No.:
RBS on FaceBook

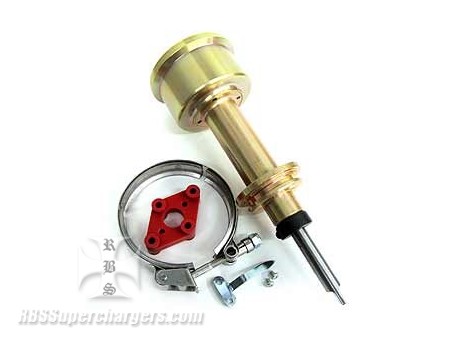

RBS carries a mag drive for the Chrysler 440/Hemi motor and here is one shining example for our 440, 413, 426, KB, JP-1, TFX customers. Housing is made from heat treated alum. and is anodized for corrosion protection.

Kit includes a timing pointer, stainless steel magneto clamp and a provision to adpt. most MSD or Mallory/FIE Super mags to the mag drive using the cross drive adpt.

Drive seals to the manifold with a O-ring for a leak free application and measures from the gasket surface to the magneto surface 5.437" tall.

If racer needs the lower oil pump drive/bronze gear portion it can be purchased separate under part #2500-0083M in the pull down menu.

Updated drive coupler allows for better ignition timing accuracy as where the old nylon diamond could become stretched or brittle and allow timing variables the cross design eliminates the issue.

Cross drive is included with drive assm.
