Burst Panel Frame Inner PSI Screw

Price:
$130.00
Part No.:  2000-0013A
Qty:
RBS on FaceBook
RBS has found this to be the answer to premature screw blower burst panel failure and is NHRA approved. This kit allows you to run two burst panels .875" apart on the blower, which gives you redundancy and helps keep the racer winning rounds.

One panel goes between the ring and spacer, while the other is flush against the rear blower cover. A test port in the spacer accepts an Enderle nozzle jet and hose which allows you to check the inner burst panel in case it has failed.

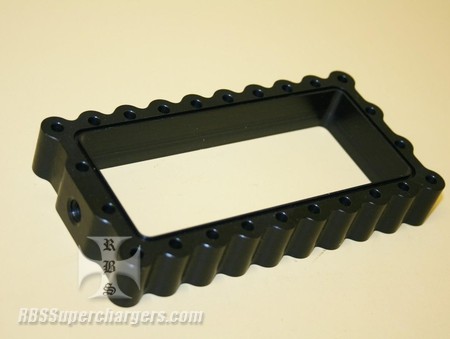

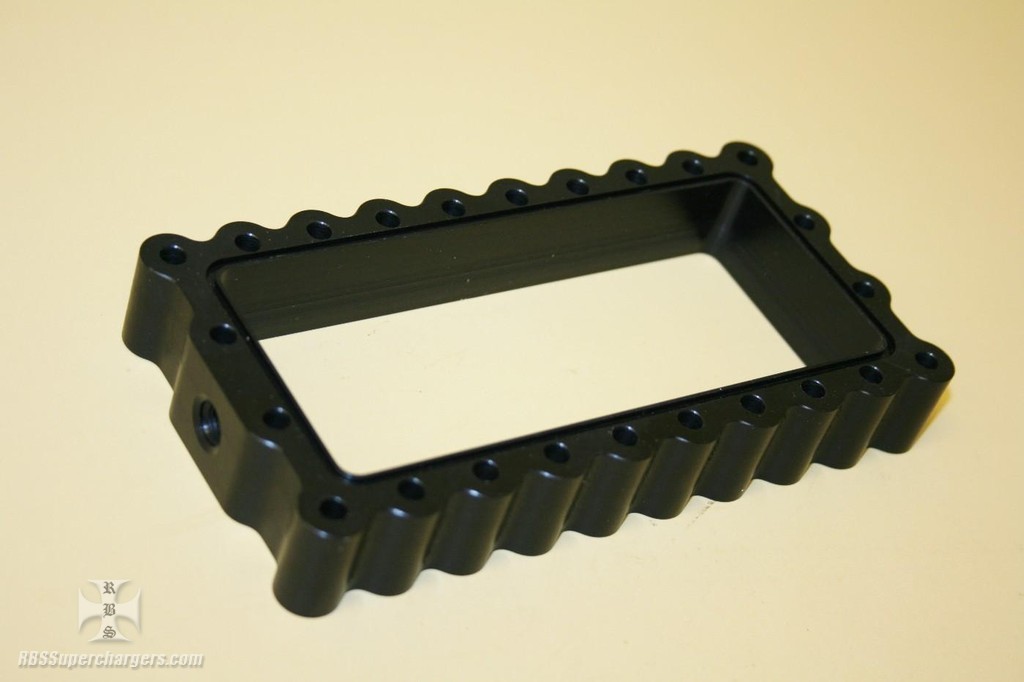

The inner frame is made from billet alum. and O-ringed for a superior seal. The kit comes with an inner burst panel frame, twenty four socket head cap screws and O-rings. Frame measures 6.125" x 3.125" and will work well with most industry standard twenty four bolt outer frames or burst panel diverters.
