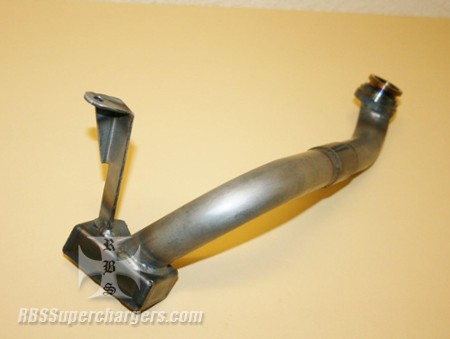

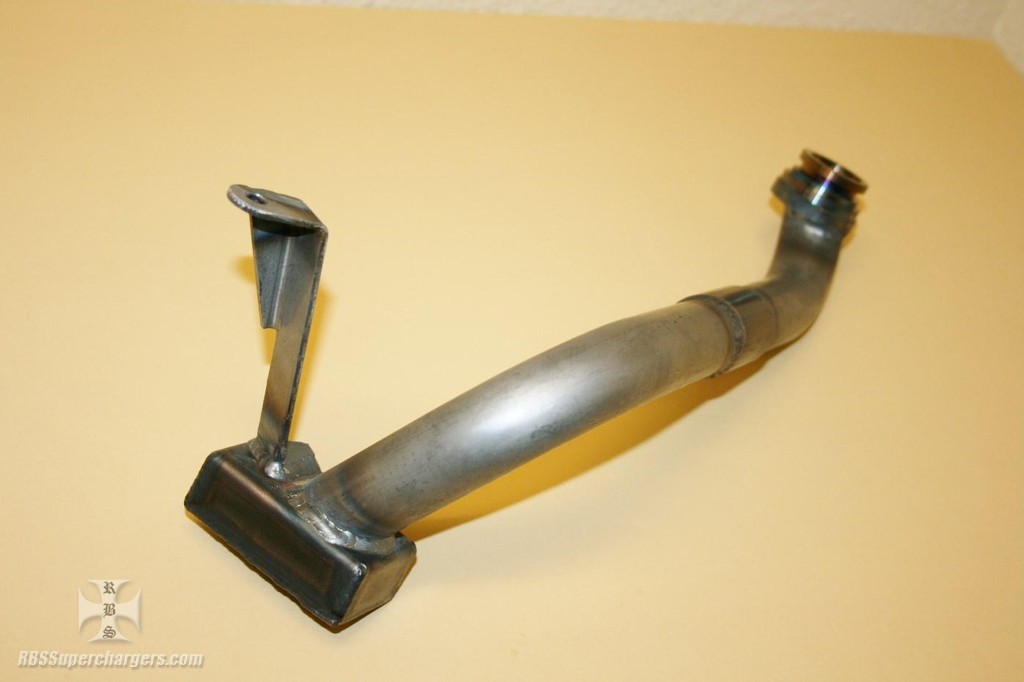

Ford Coyote Gen 3 Rear Sump Oil Pan Pick-Up #24578

Fits: Moroso Part #20571, 20572, 20575 and 20576 Mustang rear sump oil pans.

•Pickup's machined steel bung inserts into a Gen. 3 oil pump, is retained by the machined steps, an O-ring and it's integral bracket.

•Pickup has a large 1-1/4" diameter tube so that there is no restriction of flow during continuous high rpm track events and pick-up measures 3.00" X 1.750" to get plenty of oil into the oil pump.

•Must use with Moroso Part No. 22936 or Ford Part No. BR3Z-6710 A windage tray/gasket.

•Kit includes pickup tube, O-ring, main cap bolt, standoff and 8mm flange head screw.
