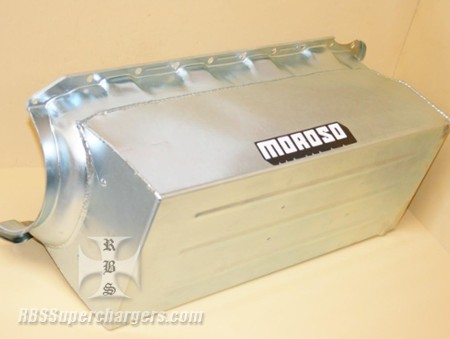

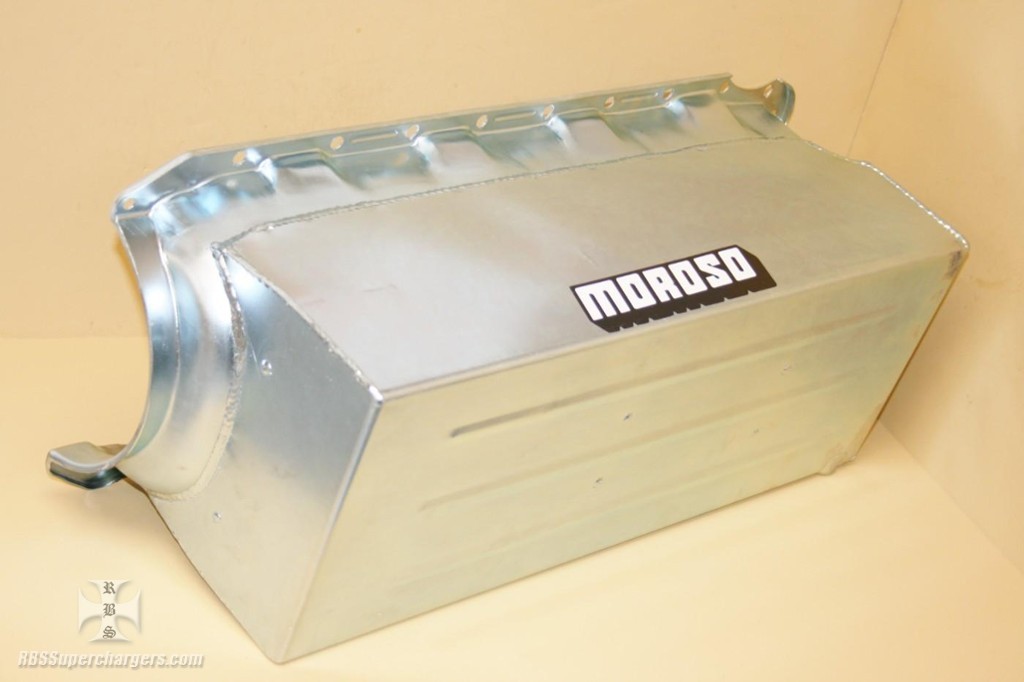

Here are some features of the oil pan. Includes 1/2-20 magnetic drain plug, will clear up to 4.750" stroke w/steel rods, 4.500" w/aluminum rods, holds 11 quarts of oil, zinc coated finish, windage tray to keep oil off the spinning crankshaft, uses standard two piece rear main seal. Oil pan has dual trap doors, rear anti-climb baffle and removable anti-slosh baffle for improved oil control.
Pan from block surface to bottom of rear sump is 8.00", from block surface to bottom of front sump is 8.00" and oil pan is 8.250" wide the entire length. Windage tray is removable to make cleaning the oil pan an easy task and to be sure to get any contaminants removed.
Oil pan can be used with 153 & 168 tooth flywheel combinations.
