*** IN STOCK SHIPS TODAY *** For the racer looking for an outboard support Hemi idler bracket assm. for their hard hitting roots or ground pounding screw blower combination here it is ready to put one on your race engine.

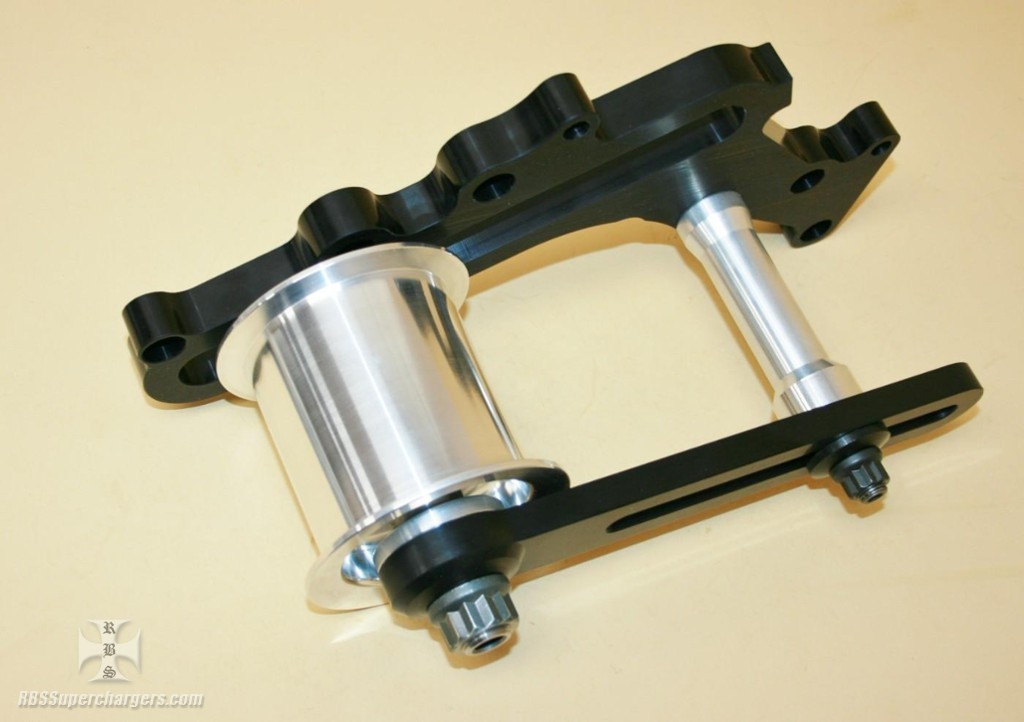

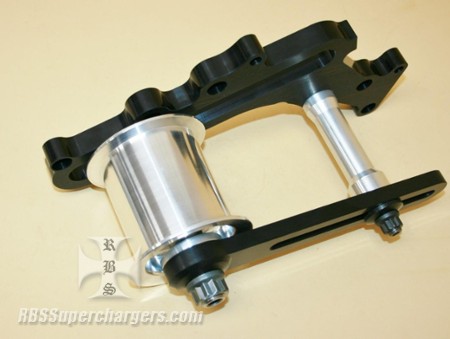

Block bracket that is made from .750" billet alum. with a 9.00" adjustment slot and 1.00" T-nut provision. Block bracket has two extra ears machined on it to mount #1400-0023 blower snout support rods for set back roots blower combinations. Idler pulley stud is .750" gun drilled steel and outboard brace uses one .500" nut to lock the idler pulley down on the support side.
Racer will still need a #1500-0021A TFX or #1500-0022A BAE mounting hardware kit and a single or dual mag support. Bracket is set up for 75mm idler pulleys. Fits all KB, Mopar, BAE, TFX, JP-1, Indy and most other alum. race 426 style Hemi engine blocks.
Idler pulley is made from billet alum. and uses two sealed ball bearings to provide the ultimate in strength and durability.
Pulley dia. is 3.20" where the belt rides, 4.00" overall dia. and 3.00" wide.
Bracket and front brace are anodized finish, idler pulley and support standoff is machined aluminum.
Racer can choose idler bracket set up for 75mm idler pulley from drop down menu.
