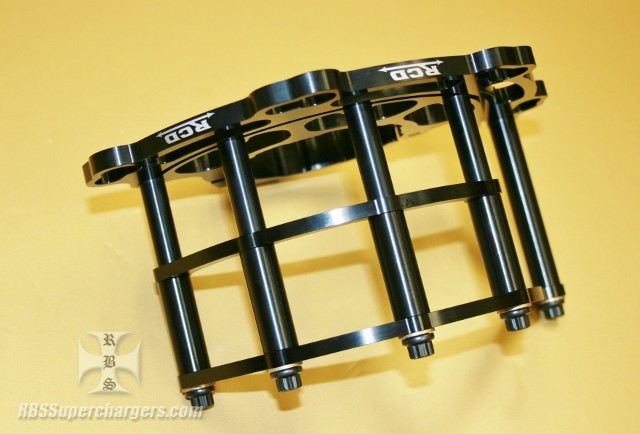

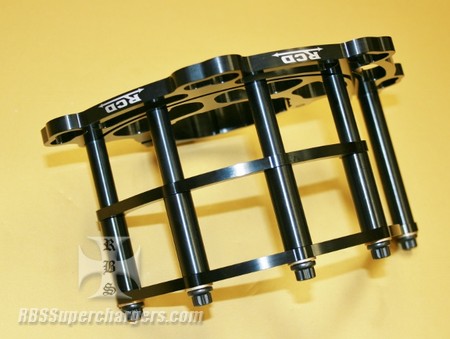

RCD Heavy Duty Blower Belt Guard Clamp On Dragster

Part No.:  2025-0018B
RBS on FaceBook
RBS stocks a huge selection of blower belt guards and here is one of the toughest examples. This guard
assm. is considered dragster as the top starter mounting lug has been left on due to no clearance issues.

The snout support clamp with integrated starter face plate has been machined out of a solid 1" chuck of billet alum. with two lugs left towards the bottom for the racer to attach blower snout support rods and is hinged on a .250" dowel pin so getting the mount plate on and off the blower snout is a snap.

Includes nine billet alum. spacers, five grade eight mounting bolts with washers and two .250" billet alum. support bars that have all been black anodized for the stealth look.

Clamp is designed to fit all blower snouts that have a 3.530" dia. Guard is primarily designed to be used with six inch or longer blower snouts.
