Connecting Rod Length Checker Hemi

Categories:
Tools
Engine
Tools
1320 INC.

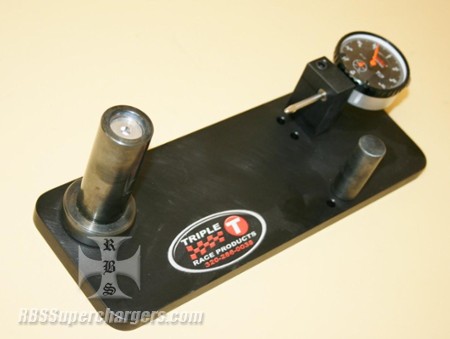

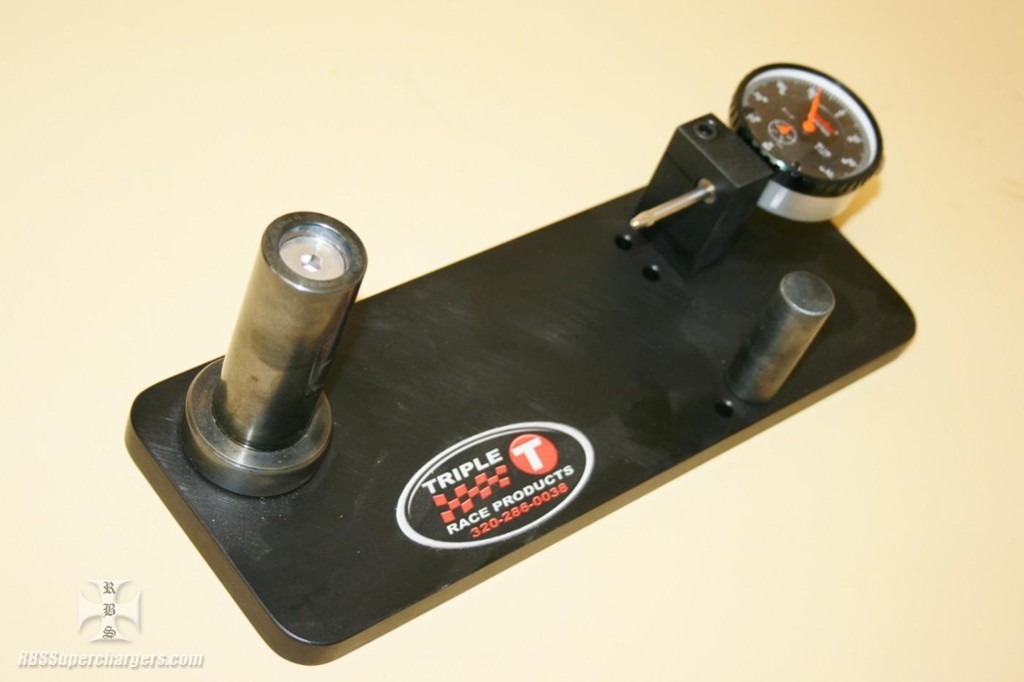

For the racer that runs a nitro connecting rod pounding motor and services the parts back at the shop this connecting rod length checker is a tool that will speed up services and ensure you are not re-installing something back in the engine that should be going to the recycle yard.

Tool base is made from .500" billet alum. that is anodized black. Indicator mount has two locating spots with .750" spread to give the racer two choices for rod lengths. Includes 0 to 1" indicator that reads in .001" increments. Wrist pin size is 1.156" so racer can slide Big Show Hemi connecting rods on quickly and measure to see if the pedal job compromised the rod set or can it be serviced and put back in for another pass.

Can be wall or bench mounted.
