This injector is low and forward with pro mod or funny car design in mind. The thought to get the injector forward on todays set back roots blowers, smooth the air flow into the injector off the hood cowling which will allow the injector into some clean air and provide the blower with more air to make more boost which we all know with a blown alcohol engine boost is your friend.
This injector uses a billet alum. front plate to mount the butterflies giving a perfect fit to make idle setting easy and has the added benefit of a spread front bolt pattern getting the front mounting bolts out of the air flow allowing the racer to make more power.
Injector includes a billet alum. spread bolt pattern adapter plate that is O-ringed on both sides, anodized black and made from .250" billet alum. Injector has ten 1/8" fuel nozzle provisions and opening in injector is 10.00 x 4.250". Injector has a 74 sq. in. butterfly area and is 7.500" tall from blower mounting surface to top of injector.

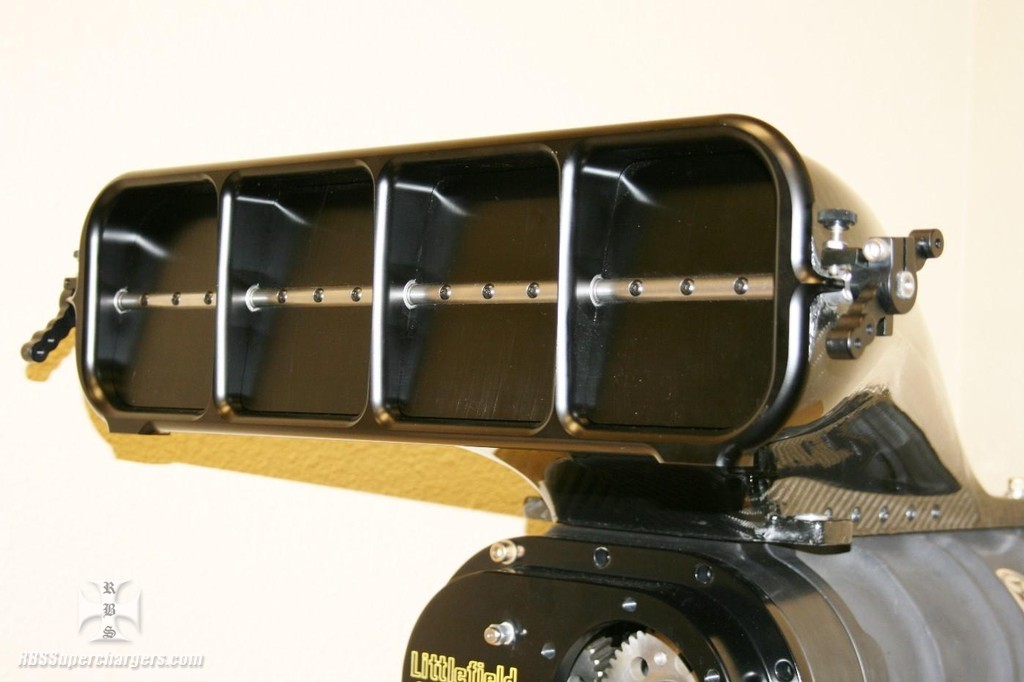

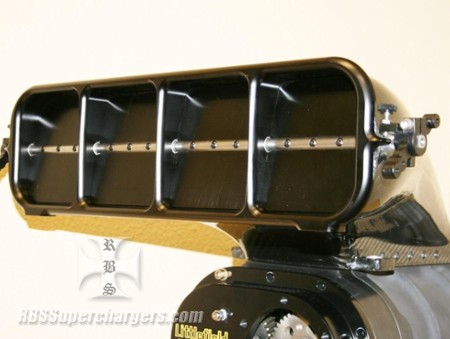

On the top surface there is a nice strengthening rib inside to stop the injector from oil canning when idling and from center of front mounting bolt to front face of injector it hangs forward 10.50" and weights nine and half pounds as seen in the pictures. Injector is twenty inches wide across the front and each butterfly measures 4.750" x 4.250".
Injector will mount on all 6-71 thru 18-71 blowers that use the industry standard 13.250" on center bolt pattern. Butterfly plate has provisions to mount a barrel valve one side and a throttle cable bracket on the other side.
Injector is sold bare but can be made complete at an additional cost if the racer chooses. Injector is special order and typically three to four weeks for delivery once it is ordered.
