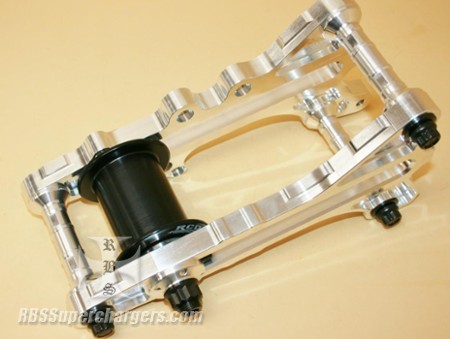

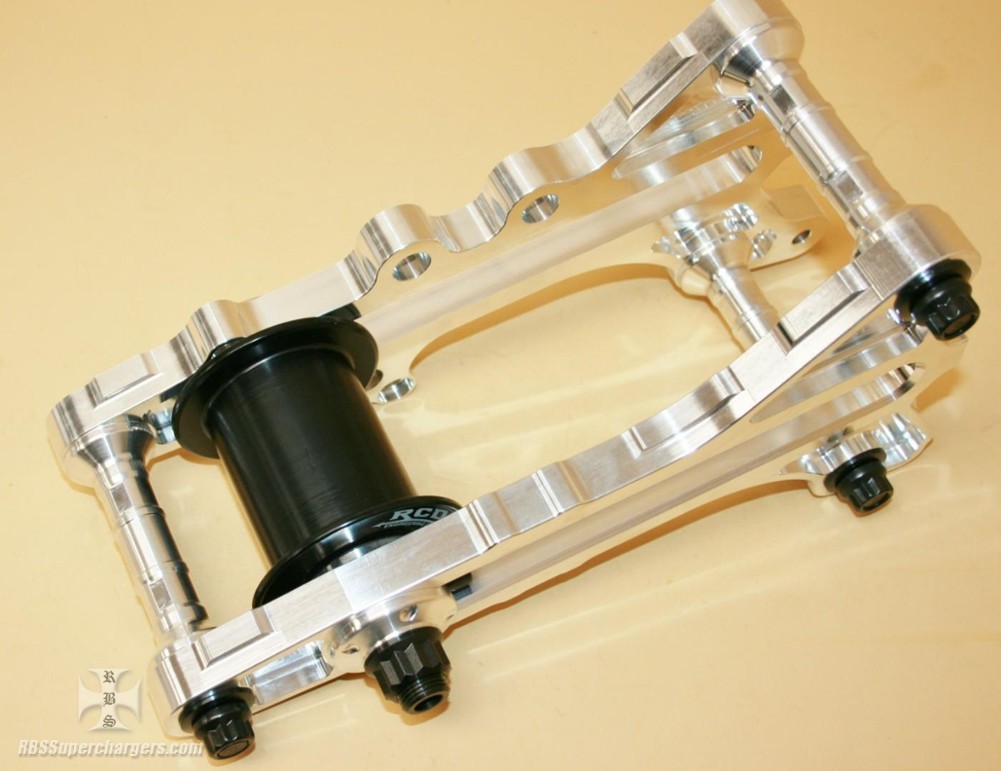

*** 84MM IN STOCK SHIPS TODAY *** PICTURED IS 75 & 84MM IDLER BRACKET ASSM'S. *** BUYER WILL NEED TO PURCHASE JACK SCREW, JACK SCREW NUT AND JACK SCREW BLOCKS TO MAKE A COMPLETE BRACKET ASSM. *** For the racer looking for one of the best designed outboard support idler brackets look no further, this RCD outboard support BAE/TFX Hemi idler bracket assm. is Next-Gen Innovation with unmatched Top-Tier engineering to give the racer the most consistent means to tighten the blower belt round after round on the way to the winners circle. Perfect match for the hard hitting roots or ground pounding screw blower engine combination.
Block and front support bracket is made from .750" billet alum. with a 9.00" adjustment slot and 1.00" T-nut provision. Idler pulley stud is .750" gun drilled steel and outboard brace uses three .500" nuts to lock the idler pulley down on the support side. Front and rear plate have a 3/8"-24 jack screw provision that will allow the racer to get precise belt adjustment and with the three mounting points for the outboard support plate plus the idler pulley mount it keeps the idler pulley square to the bracket and offers the strongest way to mount the idler pulley over previous designs.
BAE or TFX mounting hardware kit is included and a single mag support spacer. Racer will still need to purchase jack screws, jack screw nuts and jack screw blocks to make complete.
Bracket is set up for 75 or 84mm idler pulleys. Idler pulley assm. is 2.450" diam. where the belt rides, 3.450" overall dia. and is 3.10" wide for 75mm or 3.400" wide for 84mm blower belts. This pulley is made from billet alum. and has been hard black anodized for wear resistance. This pulley uses high speed precision bearings and is set up to be used with a .750" bolt or stud and a 1" T-nut.
Fits all KB, Mopar, BAE, TFX, JP-1, Indy and most other alum. race 426 style Hemi engine blocks.
Finish is machined aluminum and bracket weights 8.0 pounds as seen in the pictures for 75mm and 8.5 pounds for 84mm assm.
