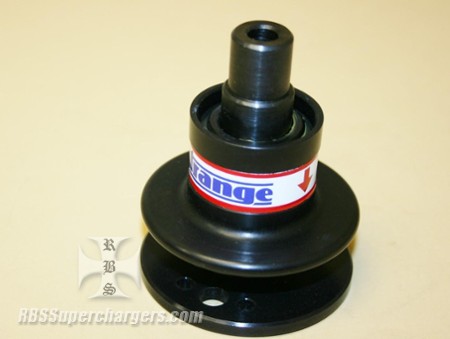

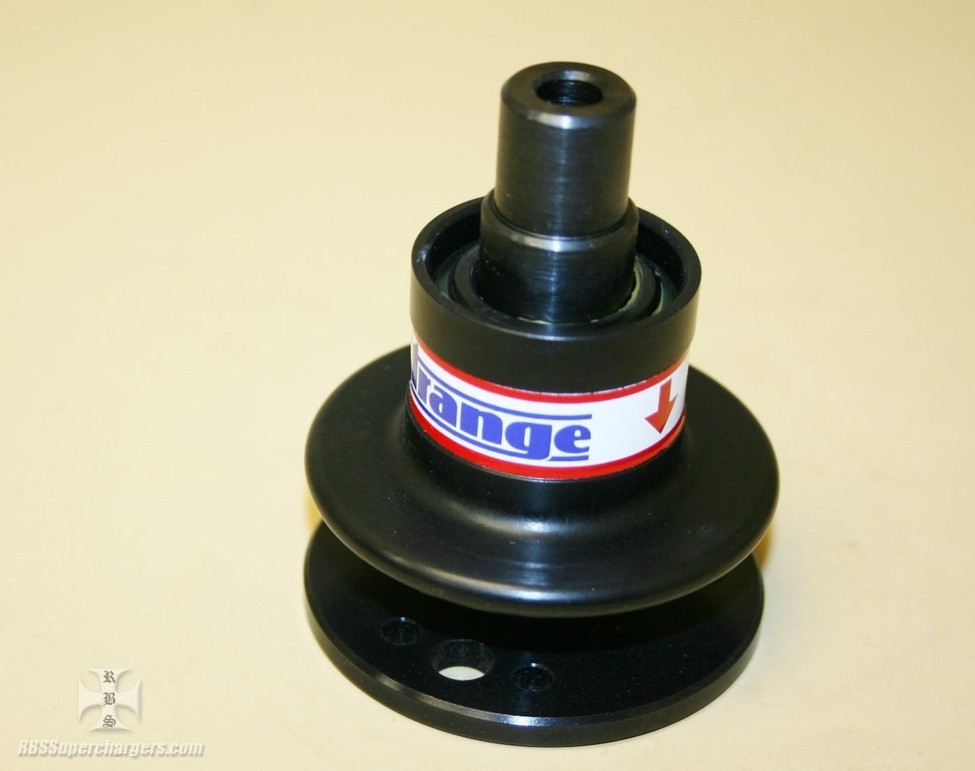

Quick Release Butterfly Steering Wheel Hub Strange #Q1000

*** IN STOCK SHIPS TODAY *** For the racer that is looking for one of the best quality quick release butterfly steering wheel hub kits on the market look no further, RBS carries this Strange quick release strering wheel hub kit. Includes detalied installation instructions.

Strange quick release steering hubs are SFI 42.1 certified. The billet aluminum hubs are a completely self-contained mechanism. The fixed steering wheels in cars can significantly go against your proper entry or exit from a race car in an emergency, this is why quick-release steering hubs come in handy.

Steering columns require hub adapters to convert the column so that it can accept a removable steering wheel. You cannot install the quick release wheel without the hub adapter. A 4130 stub shaft is furnished for ease of installation and the keyed spline allows for easy wheel orientation. Can be mounted in a Dragster or Funny Car using butterfly steering wheels with three or four bolt hole pattern.

Features
• Provides quick removal of steering wheel
• Integral flange eliminates loose components
• Spring loaded with positive locking system
• Coarse spline simplifies engagement
• One wide tooth ensures proper steering wheel alignment

Hub
2024-T351 billet aluminum, 2.500" O.D., 3 on 1.375" bolt circle .193" holes, 3 on 1.750" bolt circle .316" holes, 4 on .750" x 1.650" centers .193" holes, broach 10 spline with one tooth removed, black hard anodized finish.

Release Collar
6061-T6 billet aluminum, 2.480" O.D., black hard anodized finish

Weld End is made from 4130 chrome moly, 9 spline with one wide tooth, .650" O.D. tube end, .312" bore lightening hole,
black oxide finish.
