RCD Offset Front Mag Drive

Price:
-Select-
Part No.:
MPN: 302000-0005
RBS on FaceBook

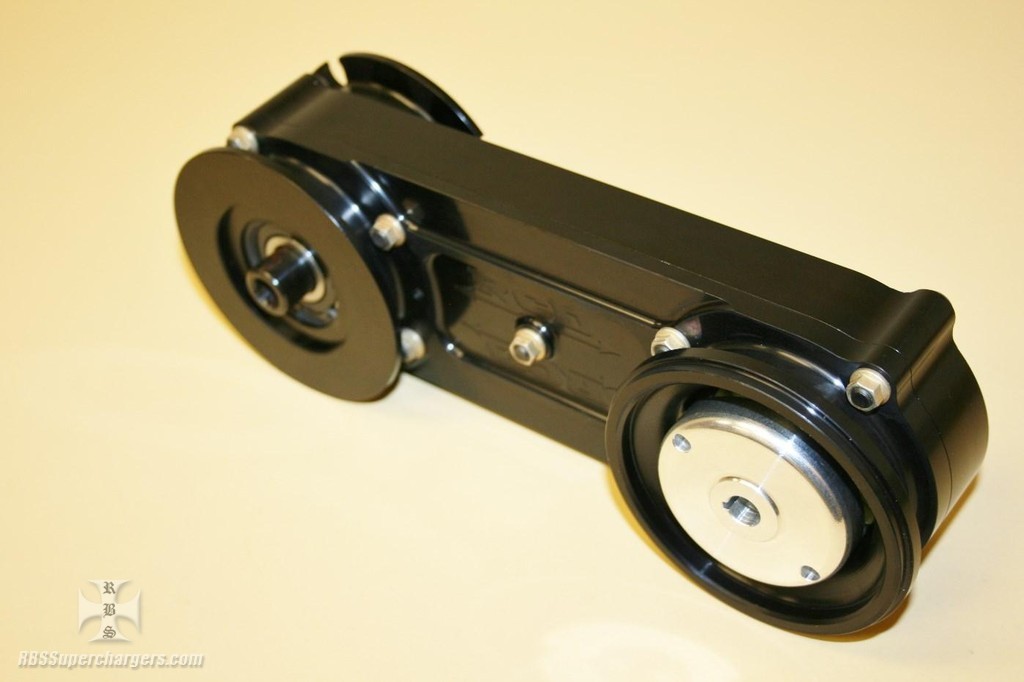

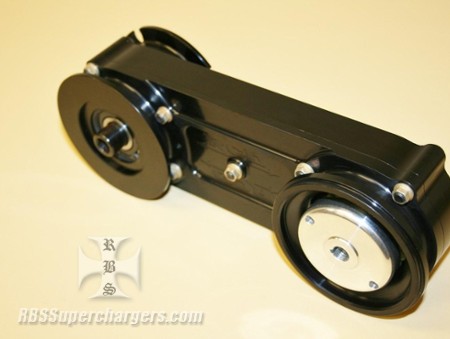

*** ALUM. & BLACK FINISH IN STOCK SHIPS TODAY *** RCD front mount offset magneto drive. This magneto drive was designed with the intent of using it where a large roots blower would be used or a set back roots blower where magneto clearance would be a issue on a BBC or 392/417 Donovan combination. It also works great in a Hemi pro mod situation where hood clearance is a issue and you don't want a mag 44 sticking thru your hood.

This drive is constructed from billet alum. with a heat treated steel shaft to drive the fuel pump. The shaft has a .375" male hex to be used with all .375" female shafts and uses a .375" female to drive the fuel or oil pump. The shaft is supported with a bearing on each side of the shaft to help with fuel pump longevity and the drive belt is .500" 8mm Kevlar GT belt.

The magneto is driven by a four jaw love joy coupler which is included in the drive assm. to mount your MSD or Mallory magneto. Drive is 2.50" thick and has a 6.60" offset from center to center. The backside of the drive has a drilled and tapped 3/8-16 hole for helping support the drive.

This drive can be mounted in any position you desire for clearance. It mounts using a quick release Marmon type clamp. This drive is also lightweight coming in at barely over three pounds.

Also a Hemi oil pump can be driven off this if the user so desires, just ask and RBS will set you up with the adpt. to handle this. This adpt. is purchased separate from the drive.

Racer can pick finish from drop down menu.
