SBC Street Blower Manifold BDS #3006

Part No.:
MPN: 8006
RBS on FaceBook

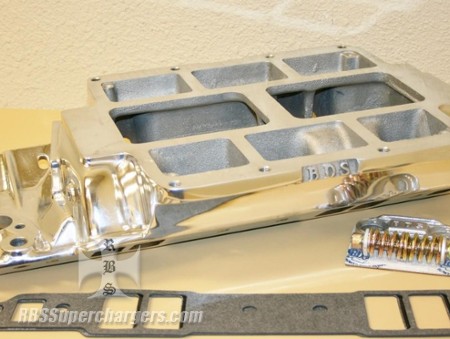

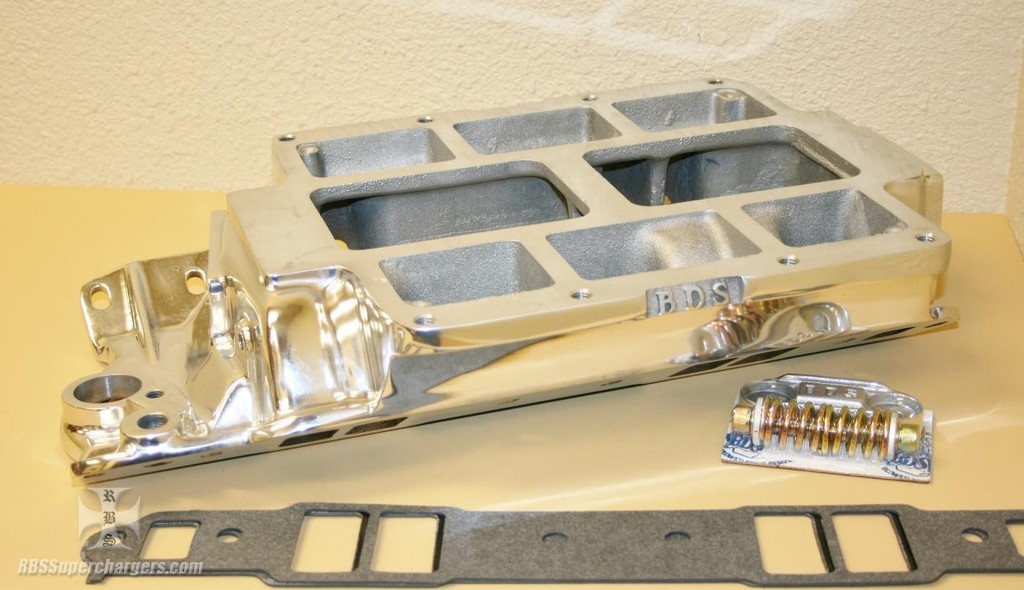

*** IN STOCK SHIPS TODAY *** This blower manifold has all the provisions for mounting a supercharger on a small block Chevy. The intake will fit a 6-71 or 8-71 blower and fits small block Chevy's 283, 302, 327, 350, 400 and many other aftermarket block and head combinations but not the Vortech cylinder head combination.

The mounting surface has solid sides for added rigidity and to help keep the manifold flat for proper blower seal. It also has been machined for a thermostat to allow use on the street and the floor has been radiused to allow better fuel distribution.

The manifold is 3.90" inches high overall and the HEI distributor can't be used with the 8-71 blower. Ports measure 1.875" x 1.125", drilled 1/8" NPT in the rear for a boost gauge, 1/4" NPT in the front for a temp. gauge and includes a backfire valve assm. for those little mishaps. Gasket ports included with the manifold measure 2.200" x 1.300" so the intake can be ported out if needed buy the buyer. Manifold includes thermostat, thermostat housing and gasket for traditional slip on radiator hose application.

Manifold can be purchased satin or polished aluminum finish from drop down menu.
