Sanders Engineering Rear Wheels

Price:
-Select-
Part No.:  2630-0038
RBS on FaceBook

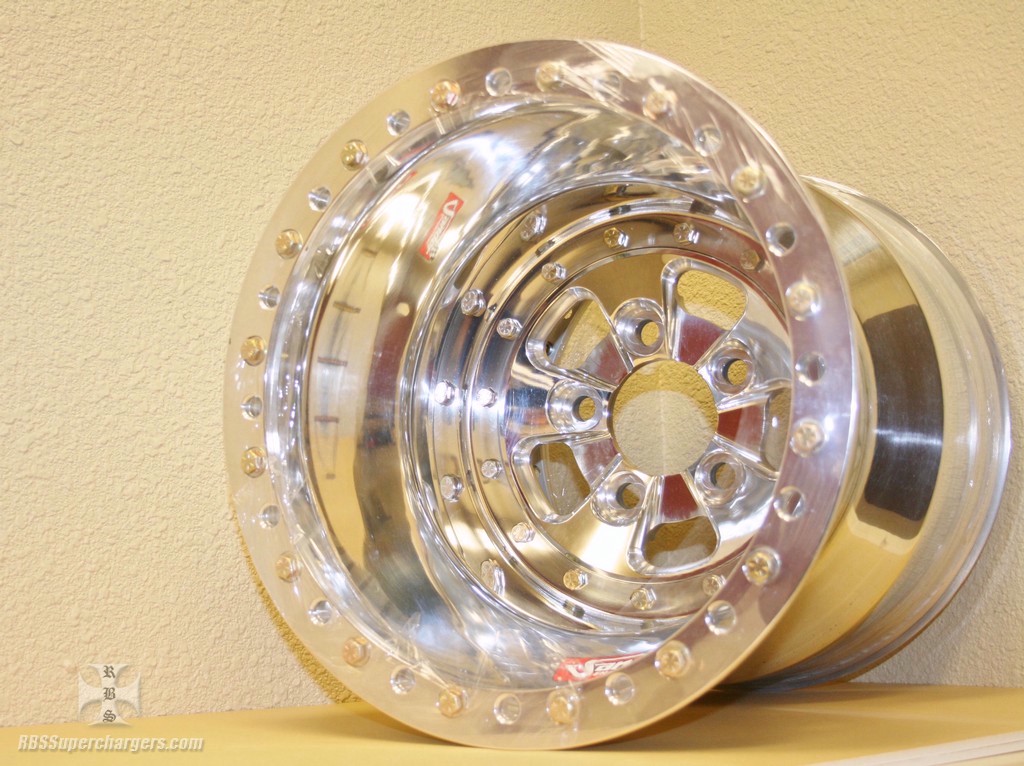

RBS is now selling Sanders Engineering wheels. These are state of the art wheels and are the only racing wheel company to CNC cold spin all of their aluminum wheel halves. They are cold formed over a two stage mandrel and heat treated twice to get a perfect part. The bead lock rings are all made from billet material.

Wheels sold individually. These wheels are bitchin! Email or call for pricing and delivery.

** 750 Series 15" Diameter "NON" Bead Lock Rear Wheels:
Rear Wheels 3pcs 8" to 16" Wide Non Bead Lock
Part Number Example: "75015145045"
750 Series Wheel
15 for 15" Diameter
14 for 14" Wide (8" thru 16" in 1" increments)
50 for 5" Back Spacing (1" thru 7" in 1" increments)
45 for 5 on 4.5" Bolt Circle (47 for 4.75", 50 for 5" and 55 for 5.5"

** 750 Series 15" Diameter Double Bead Lock Wheels
16 bolt Bead Lock System
SFI 15.1
Rear Wheels 3pcs 8" to 16" Wide (in 1" increments)
Part Number Example: "75015124045DBL"
750 Series Wheel
15 for 15" Diameter
12 for 12" Wide (8" thru 16")
40 for 4" Back Spacing (1" thru 7" BS)
45 for 5 on 4.5" Bolt Circle (47 for 4.75", 50 for 5.0" and 55 for 5.5")
DBL for Double Bead Lock

** 760 Series 16" Diameter Wheels
Available with 4", 5", 6" Back Spacing
18 bolt Bead Lock System or Non-Bead Lock
SFI 15.1 and 15.3 Available
Rear Wheels 3pcs 16" Wide

Part Number Example: "76016164045DBL"
760 Series Wheel
16 for 16" Diameter
16 for 16" Wide Wheel
40 for 4" Back Spacing (50 for 5", 60 for 6")
45 for 5 on 4.5" Bolt Circle (47 for 4.75", 50 for 5.0" and 55 for 5.5")
DBL for Double Bead Lock

** 760 Series Heavy Duty 16" Diameter Wheels
Available with 4.25" Back Spacing
24 bolt Bead Lock System
SFI 15.3 or 15.4

Rear Wheels 3pcs 16" Wide

Part Number Example: "76016HD164250DBL"
760 Series Wheel
16 for 16" Diameter Wheel
HD for Top Fuel SFI 15.4 (H3 for high horsepower SFI 15.3)
16 for 16" Wide Wheel
42 for 4.2" Back Spacing
50 for 5 on 5.0" Bolt Circle (55 for 5.5")
DBL for Double Bead Lock
