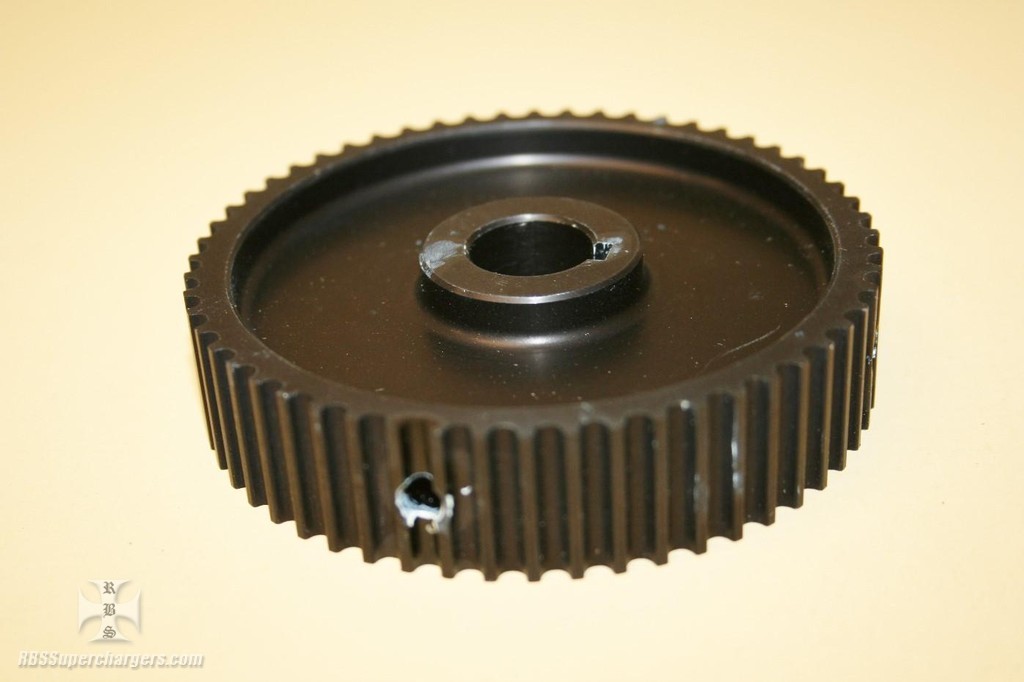

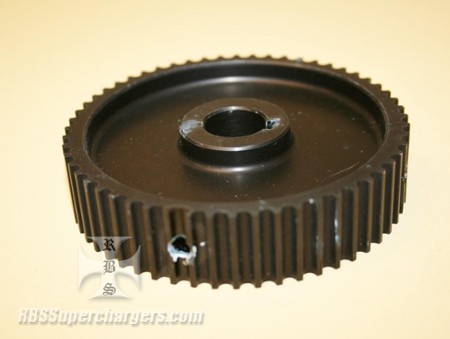

Belt/Cable Driven Fuel Pump 5mm Drive Sprocket 56 Tooth

RBS carries a full line of Waterman 5mm fuel pump drive components. Pulley is .780" wide, made from billet alum., uses a .625" bore with a .187" key, two set screws to secure the pulley to the shaft and is anodized for corrosion protection and wear resistance.

Pulleys are designed to be used with .500" or .750" wide 5mm belt, has 56 5mm teeth and designed to be used with a 28 tooth drive pulley to make the fuel pump run at cam speed off the crankshaft.
