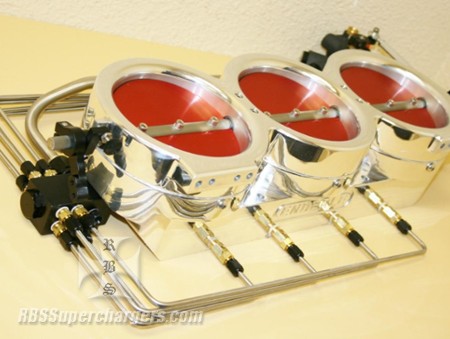

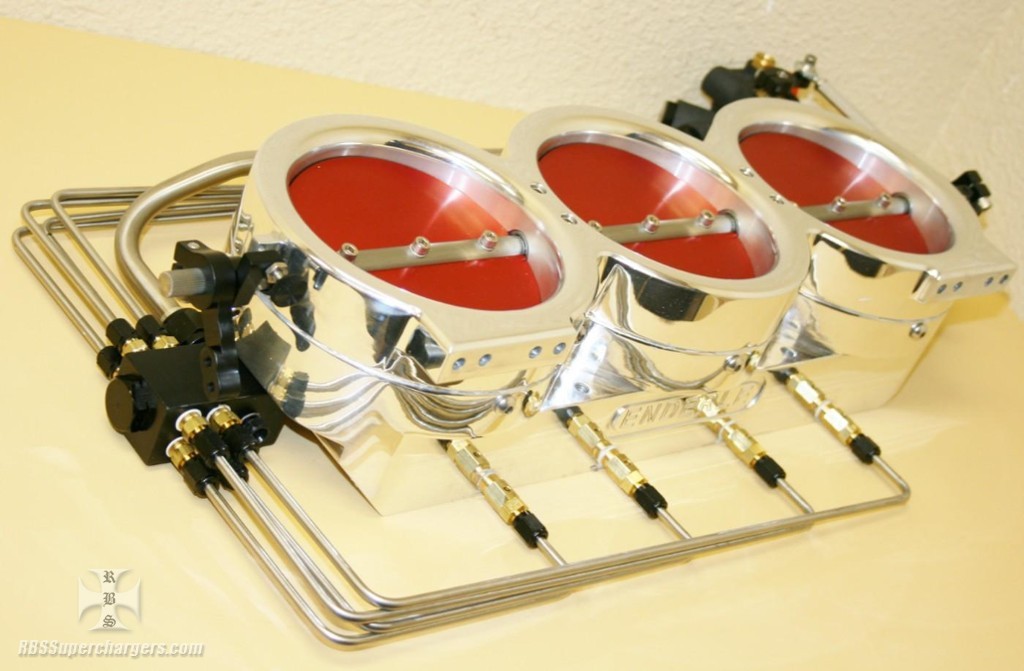

Racer can purchase injector complete or bare from the drop down menu with choice of polished or black anodized finish. Complete injector will include K-style barrel valve, idle and pump saver check valves, nozzle bodies, nozzle jets, distribution block, fuel lines and linkages.
Bare injector will include housing, shaft, butterflies, throttle stops and arms with a K-valve mounting bracket. Bare injector weights as shown in the pictures sixteen pounds.
Opening in injector base is 12.250" x 4.00", height from blower surface to top of injector is 4.50" and with the butterfly face plate bolting on the racer could swap the butterflies out for larger or smaller butterflies if a class or blower changes. Injector is 6.00" wide at the widest spot and sticks out 2.50" past the center of mounting bolt holes. Fits 6-71 thru 18-71 roots type superchargers with 13.250" bolt patterns. Butterflies dia. is 5.00" or 5.562" which racer can choose from drop down menu. Square inch area of injector is 59.00" with 5.00" butterflies. Injector has four 1/8" NPT holes for plumbing fuel nozzle bodies into.
RBS will set up for your specific application at no extra charge. Bare injector is what is shown in the pictures. BLOWER IN PICTURES IS FOR PICTURE PURPOSES ONLY.
*** PICTURE TWO THRU EIGHTEEN ARE OF THE #300-035B/300-035C BARE INEJCTOR, PICTURE ONE, THEN NINETEEN THRU
