Port Injector Nozzle Body Alum. Ball End Drop In

Categories:
Fuel System
Fuel Injection
Nozzles
JBR

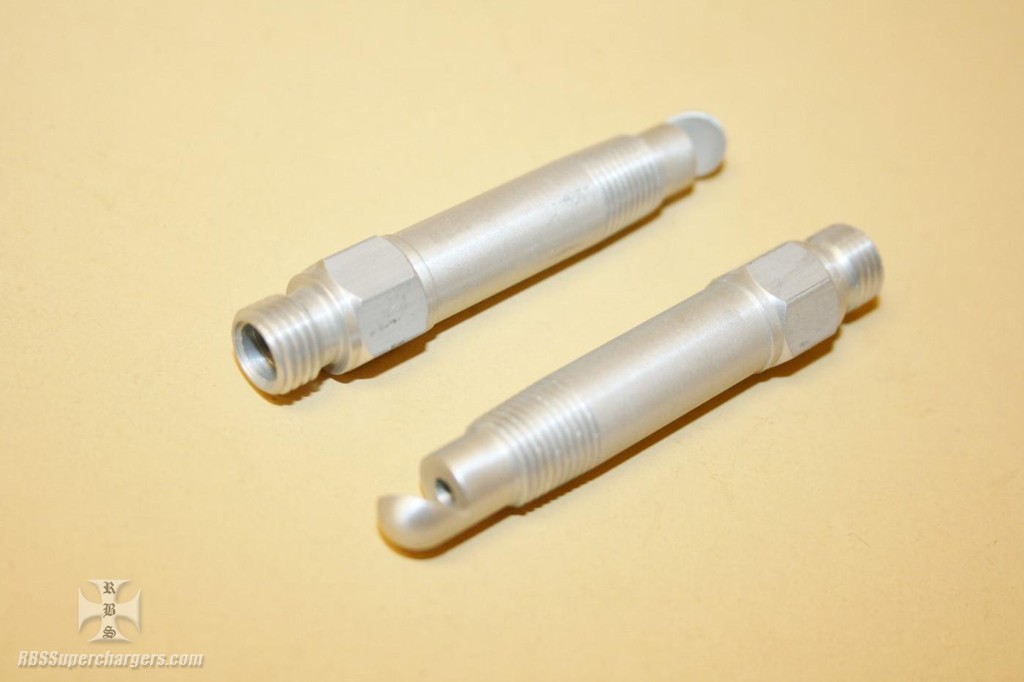

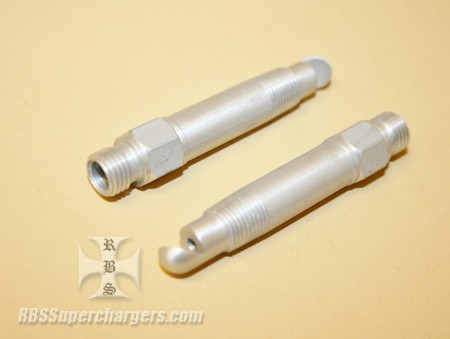

*** IN STOCK SHIPS TODAY *** RBS is always trying to bring new ideas to the table and here is one that you will certainly like. It is a billet alum. fuel injection drop in port nozzle body that has a very short extension from the end of the threads allowing the end of the nozzle body not to protrude into the airflow in the intake manifold.

Also the end of the port body has been radiused to help improve airflow towards the intake valve. Can be used with alch. or nitro engines. Port body threads are 1/8" NPT, top of body where jet goes is -3 AN and easy to install with a 7/16" hex.

From the ball nozzle end to first thread is .500" and from first thread to end of nozzle is 2.080". Overall length is 2.585". Nozzle body is designed to work with Crawford or Waterman drop in nozzle jets.

*** NOZZLE BODYS ARE CURRENTLY BLACK ANODIZED ***
