It can be ordered in several different gallonages from 13 up to 22 so the racer must specify when ordering and if not knowing RBS will be happy to help you pick a pump that will fit your application.
Fuel pumps start at $1868.50 and change as options are added. This pump uses the quick release marmon flange that requires the use of a over center band clamp which makes for quick removal of the pump to swap motors or change the blower belt. It uses the industry stand .375" hex drive shaft which is made from heat treated steel.
The pump uses a 1.250" slip on hose on the inlet and has a manifold on top of the pump to run pump loops, hi-speed lean outs or whatever you may need to run with your fuel system.
The pump can be ordered with a steel center section to provide the pump with better consistency for an additional fifty five dollars. Pumps typically start at $1868.50 and final costs depends on the options the customer orders.
RBS will need to know the following when ordering a fuel pump: 1. Gallonage 2. Quick release mounting flange or bolt up mounting flange 3. Inlet size -12, -16, 1.250", or 1.50" 4. Outlet size -8 or -10. 5.
Return manifold for fuel pump loops can be added, the fuel pump includes one in the base price but if wanting a second fuel pump return manifold it will cost additional.

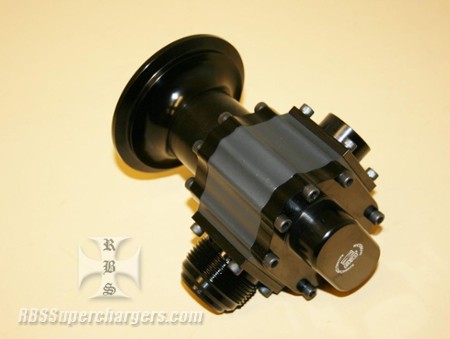

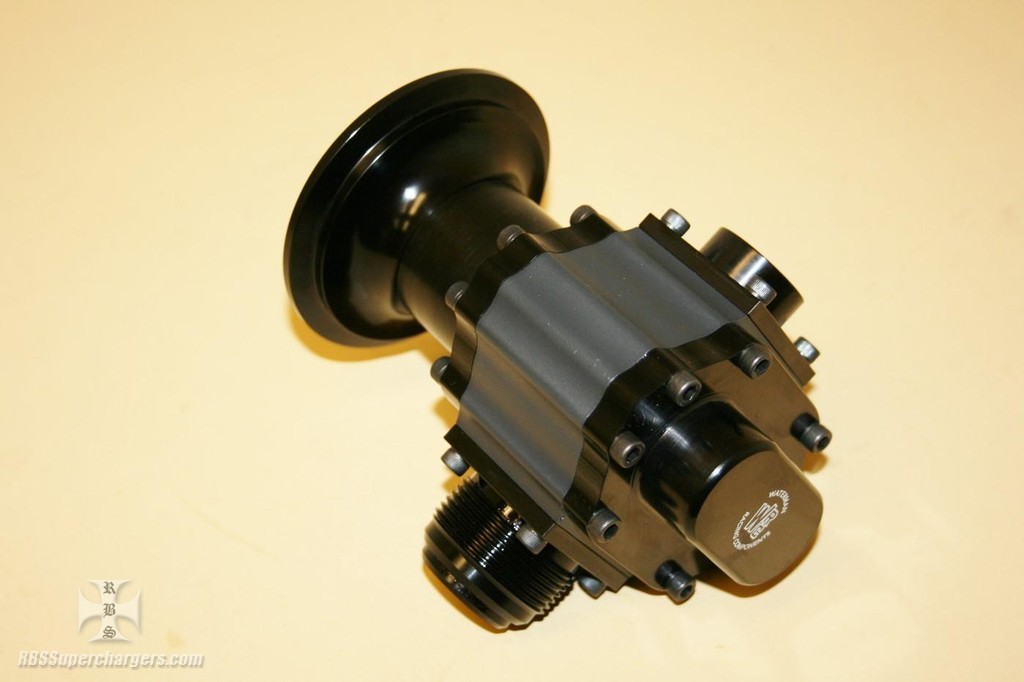

Order #310-038 with fuel pump for a second manifold. Fuel pumps may look different in final configuration than the pictures provided. Pictures are just for reference. Fuel pump can be ordered with a bolt-up flange for no additional cost if the racer chooses.
