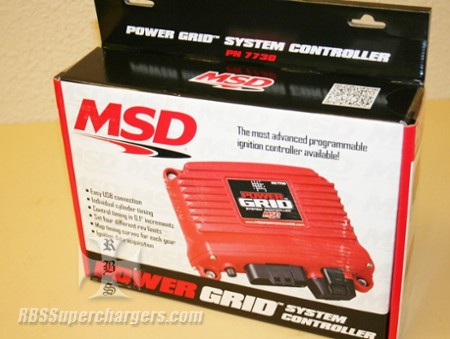

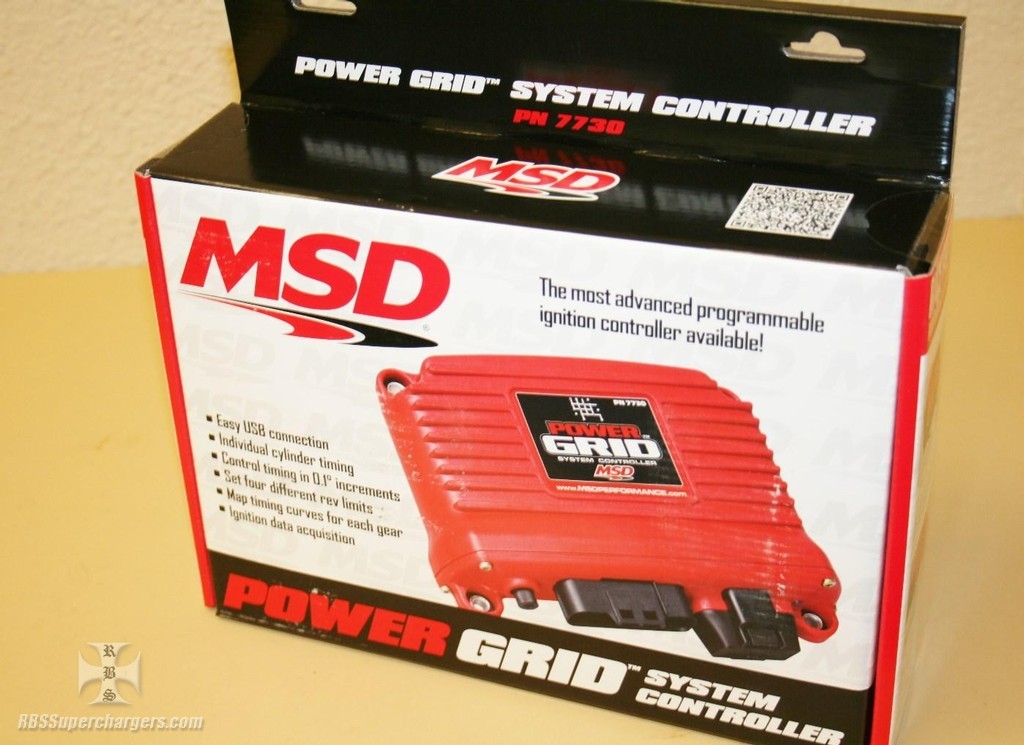

MSD Power Grid System Controller #7730

Price:
$589.95
Part No.:
MPN: 7730
Qty:
Add to Cart
RBS on FaceBook

*** RED IN STOCK SHIPS TODAY *** MSD has set the bar for ignition control with there new Power Grid system controller. These MSD Power Grid system controllers are the brains behind the entire Power Grid system and can be used with any MSD ignition or Pro Mag to provide advanced ignition tuning capabilities and allow the racer to use MSD's View software while the engine is running the racer can view real time rpm, timing and other racer programmed features.

Power Grid boxes are compatible with all MSD ignition boxes and allow the racer one degree timing changes per cylinder which is simply amazing. The Power Grid has many features so we have made the racer a list.

Power Grid includes detailed instructions on mounting and how to use.

Power Grid features include: * Advanced individual cylinder timing based on gear or time

* Micro SD-card that records the ignition data

* Can bus compatible wiring harness

* USB connection for easy programming and allows the racer to retrieve data

* Five ignition retard stages for nitrous or blower boost

* Timing based on engine rpm and gear value

* Four steps of rpm limits for burnout, spool, launch, and over rev

* Output switch set on rpm, pressure, or time

* Shift light settings for each gear

* Ignition data acquisition accepts multiple runs

* View software on racer pc.

Racer can choose from red or black for color from the drop down menu.
