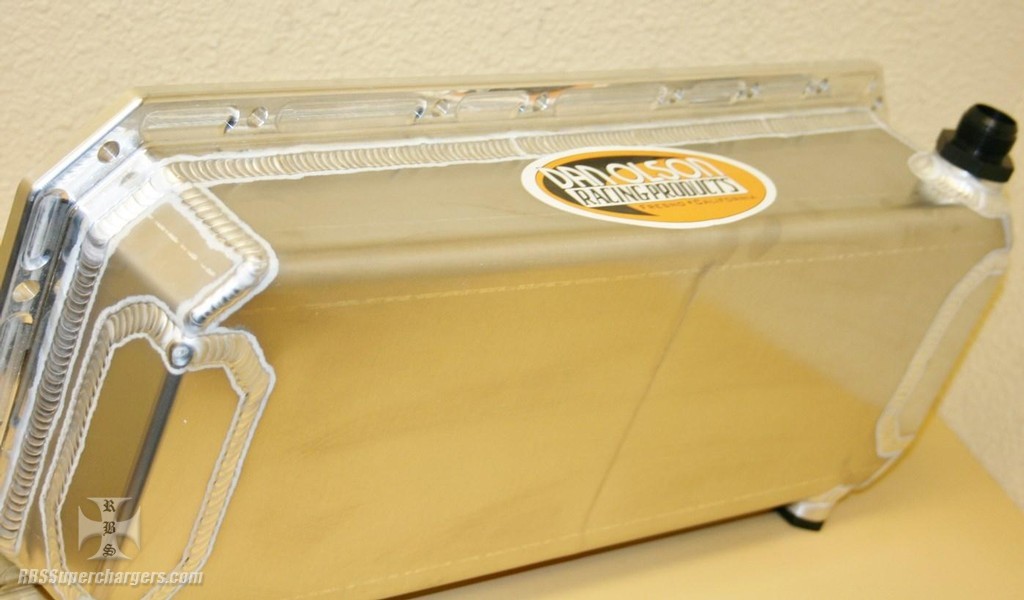

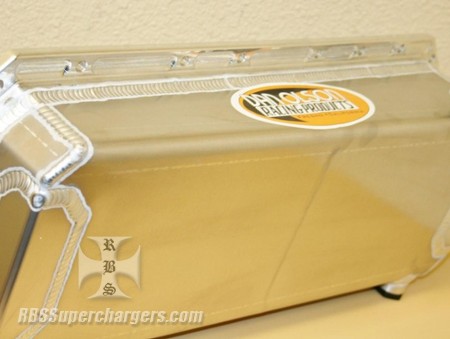

The main rail is .375" thick billet so it does not bend and the entire pan is tig welded .090" alum. to provide superior strength with added skid protection welded in front and rear on all pans to provide superior protection. Pan includes a -12 ORB drain plug and -16 oil pump fitting. Oil pan has 12 quart capacity. Oil pan measures 6.50" from pan rail to bottom of sump in the rear and 5.50" in the front.
This pan is available for wet or dry sump BAE, KB, JP-1, Indy and many other aftermarket Hemi engine blocks. Included is a Dzus windage tray to help keep oil off the spinning crankshaft.
** FOR THE CUSTOMER RUNNING A CN HEMI BLOCK WITH THE TWO BUMPS ON THE REAR MAIN CAP THERE IS A OPTION TO ADD TO THE OIL PAN TO GET THE CORRECT OIL PAN FOR THE CN HEMI BLOCK APPLICATION ON THE DROP DOWN MENU. ***
