Fuel pump adapter includes a heat treated steel driveshaft that couples the fuel pump to the fuel pump drive mount. Driveshaft is .375" male hex on one end and .375" female hex on the other end. Shaft measures 2.00" end to end for bolt on applications, 2.375" end to end for quick clamp applications, male hex is .450" long, female hex is .550" deep and shaft diameter is .625".

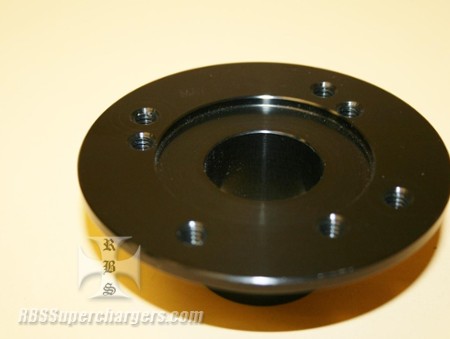

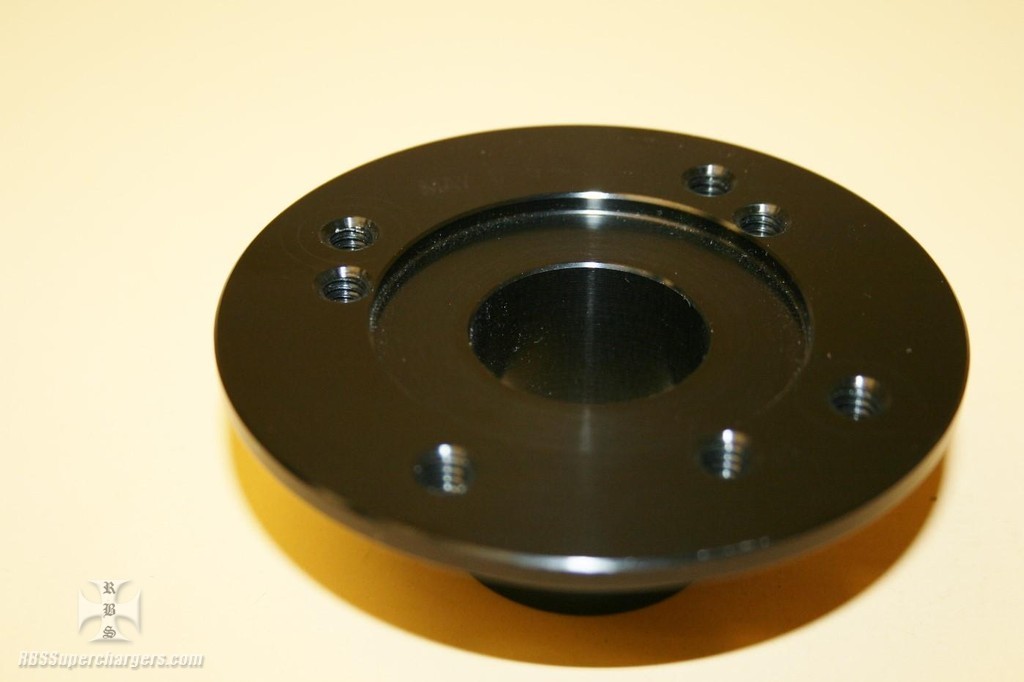

Fuel pump mount is made from billet alum. has the three and four bolt pattern with a 2.120" female register that most of the industries fuel pumps will register in to keep the fuel pump driveshaft running concentric. Register that slides in the Waterman bracket is 1.450" diameter x .950" deep.
Fuel pump mount is anodized for corrosion protection and wear resistance.
*** PICTURE SIX AND SEVEN SHOW THE FUEL PUMP ADAPTER IN THE FUEL PUMP CHASSIS MOUNT #380-0036 SO THE RACER CAN SEE HOW THE TWO PARTS FIT TOGETHER *** PARTS ARE PURCHASED SEPERATE
